Application : Verticale
Installation : Intérieure

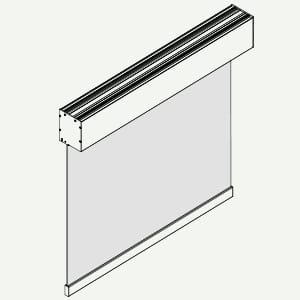

La série SG, avec la technologie brevetée Zoomtech®, propose des modèles de stores avec diverses formes et finitions de caissons. Le caisson protège à la fois le mécanisme et le tissu, améliorant l’effet esthétique et devenant ainsi un élément décoratif.
CHARACTERISTICS:
Roller tube with patented Zoomtech® technology: Ø 44 mm extruded aluminum tube with slot
Application: vertical
Installation: indoor
Headbox: C104 squared extruded aluminum headbox with removable cover and powder coated aluminum end cheeks. On supplement end cheeks for side mounting
Hem bar: FZ37 extruded aluminum weighted flat hem bar with PVC end caps
Operation: motorised operation; 230V/50Hz tubolar motor M50, with top/bottom limit switches and mains cable, thermal cut-out and class IP44 water resistance
Mounting: ceiling mounting. Supplement for wall mounting with steel powder coated “L” brackets in the same colour as the headbox
Standard colours: white RAL 9010, matt white RAL 9016, ivory RAL 1013, brown RAL 8017, matt grey RAL 7016, smooth micaceous grey, matt black RAL 9005, anodized silver
Dimensions: with Ø 44 – Min. W 200 – Max. W 500 x H 300 cm
CHARACTERISTICS:
Roller tube with patented Zoomtech® technology: Ø 60 mm extruded aluminum
Application: vertical
Installation: indoor
Headbox: squared C124 extruded aluminum headbox with two removable covers and aluminum end cheeks that permit the box to be fitted directly to the side channels or end cheeks for side mounting. The headbox allows to hide the tube including hem bar when shade is completely wrapped
Hem bar: FZ47 retractable extruded aluminum weighted flat hem bar with PVC end caps and brush. PVC waterproof strip (white, grey, black) on request; it remains visible outside the headbox
Operation: motorised operation; 230V/50Hz tubolar motor, with electronic limit switches and mains cable, thermal cut-out and class IP44 water resistance
Mounting: ceiling mounting. Supplement for wall mounting with steel powder coated “L” brackets in the same colour as the headbox
Standard colours: white RAL 9010, matt white RAL 9016, ivory RAL 1013, brown RAL 8017, matt grey RAL 7016, smooth micaceous grey, matt black RAL 9005, anodized silver
Dimensions: with Ø 60 – Min. W 200 – Max. W 600 x H 300 cm
CHARACTERISTICS:
Roller tube with patented Zoomtech® technology: Ø 78 mm galvanized steel
Application: vertical
Installation: indoor
Headbox: C160 extruded aluminum headbox with two removable covers and powder coated zinc plated steel end cheeks
Hem bar: FZ47V extruded aluminum hem bar with PVC end caps
Operation: motorised operation; 230V/50Hz tubolar motor, with electronic limit switches and mains cable, thermal cut-out and class IP44 water resistance
Mounting: direct ceiling mounting or supplement for wall mounting with steel powder coated “L” brackets in the same colour as the headbox
Standard colours: white RAL 9010, matt white RAL 9016, ivory RAL 1013, brown RAL 8017, matt grey RAL 7016, smooth micaceous grey, matt black RAL 9005, anodized silver
Dimensions: with Ø 78 – Min. W 200 – Max. W 700 x H 300 cm
